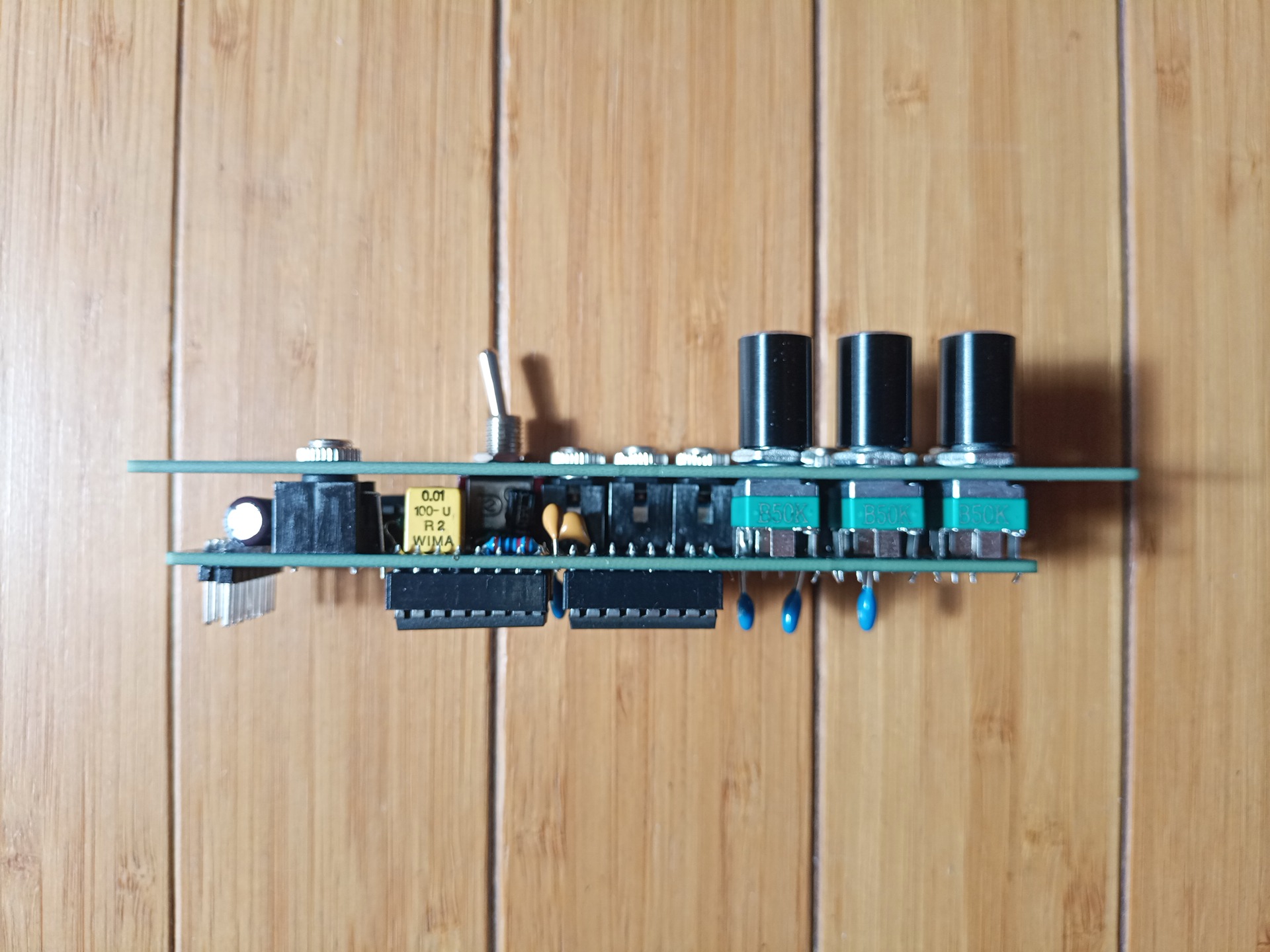

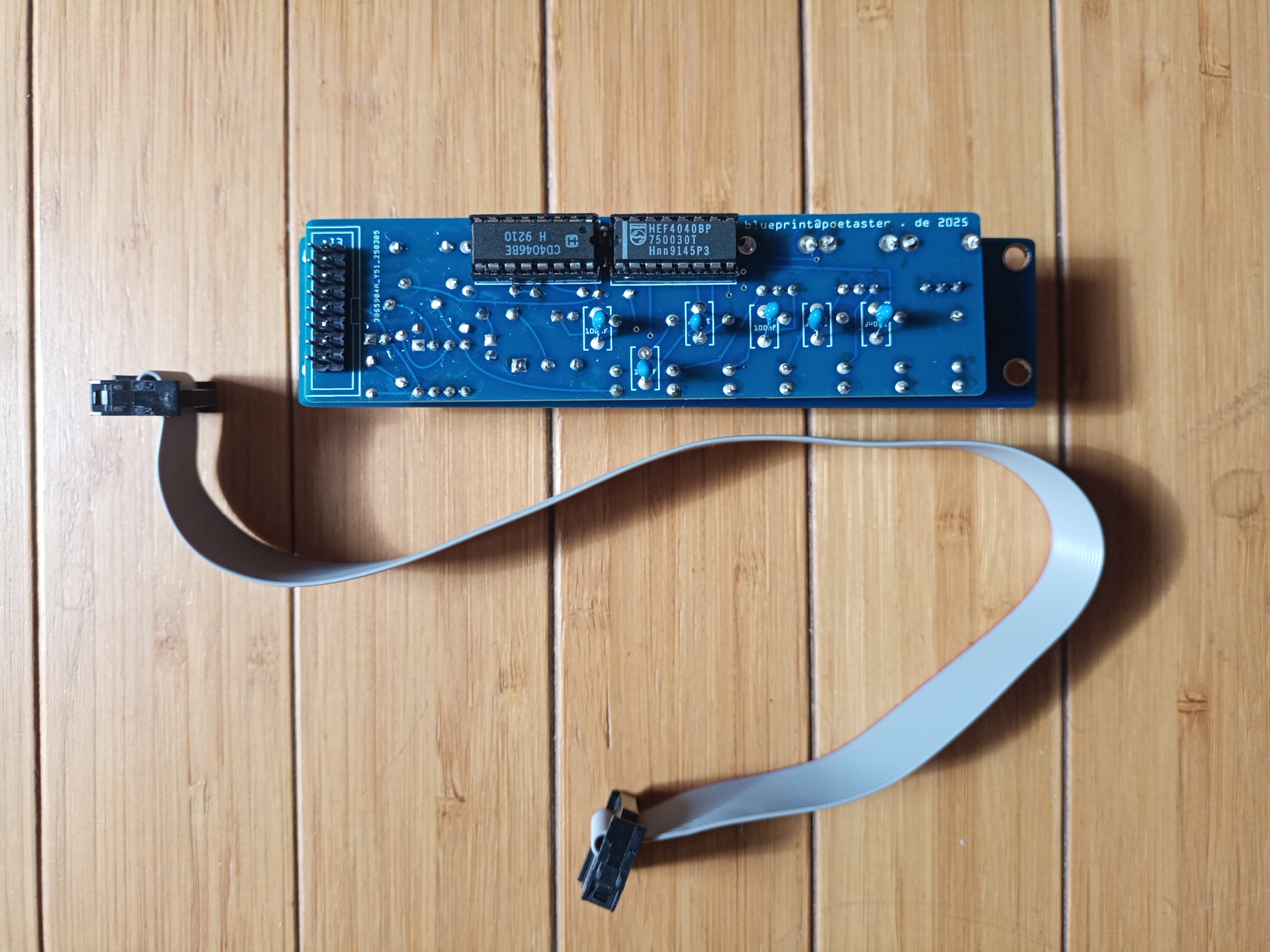

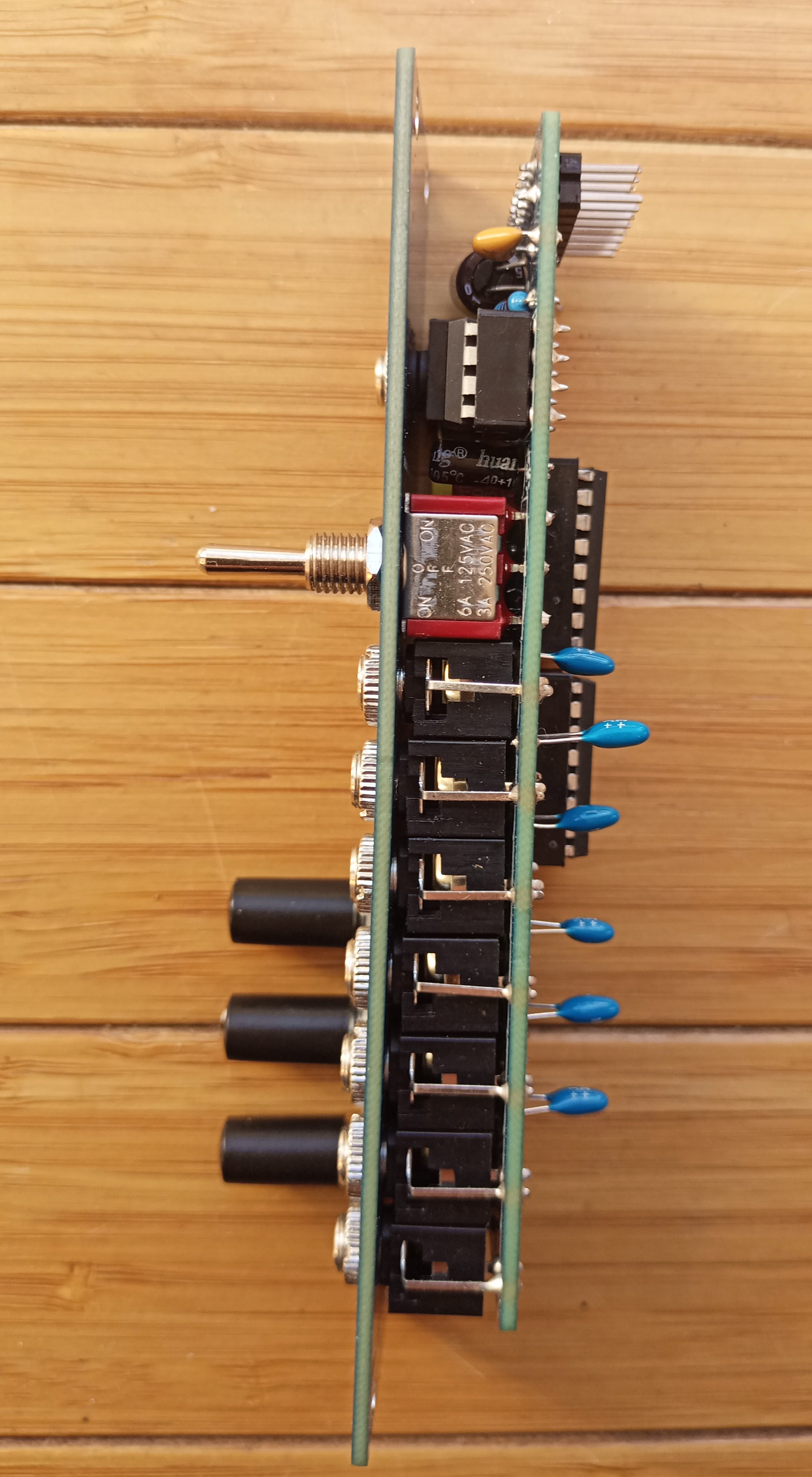

the rack

The rack is an analog eurorack module which can be used as an octave fuzz (8/4/2up or 2/4/8down) or a clock divider. or mix pairs for mad squareness.

Here, some fuzz orientalist foo with gratuitous filter foo. And the frame drum! Of course, the vca in use is portcullis.

This circuit has a lot in common with https://www.bartonmusicalcircuits.com/4046/index.html but had a completely different origin. I needed both clockdivider and multiplier in a hurry (who doesn’t) and was really familiar with the 4040 binary ripple counter. I’m also a fan of the 4046 PLL. That, I’ve used it to build a theremin. And a vco. After I started tinkering on breadboard, I was reading taking a break reading what eddy was up to, https://www.eddybergman.com, and he had a waveshaper featured. Which turned out to be very similar at the core to what I was tinkering with. In the end, I took a couple of ideas from them, the slew bit in the main and tought about sending them a rack.

Open Sources includes fritzing files, and the gerber files when the final production run comes in.
